Munich Orientation Convention in Shenzhen

        Agent for Guangdong province: Harald Penkert                   中文             other cities   Google mapplet

Shenzhen has the option to be world's first city that has realized an international orientation standard, an idea from a Munichian inventor to simplify and harmonize worldwide all orientation means: signage, cartography, navigation devices and verbal expressions.

Within this city, it is (will be) possible to find any target with easy brain work, that means

- without maps, - without names,
- without illogical numbers  - without arrows
- without floor marks  - without square grids
- without colors - without compass or other navigation devices

Buildings, crossings, stop points, bridges etc. have logical addresses like

              Shenzhen stadium  StatusQuo© SNZN   m2 r40

              Nanshan hospital                                    m8:60 r140

              Minsk aircraft carrier                               m2:55 r125


which are easy to understand if you associate the city with a clock as follows:

An outstanding point, e. g. the metro station Huizhang Zhongxin, was (will be) defined as a pole m0. Around this pole, the horizon is divided in 12 "horizon hours"

m1  to  m12   ,

whereas m12 points to north.

Horizon hours are divided in horizon minutes. These are not angles but DISTANCES to the horizon hour, in steps of approx one "block of houses" or 100 meters.

    Example      m3:10           ( read   "emm three point ten"   or   "emm three ten" ).

This is a line situated in a distance of 10 x 100m from the horizon hour m3, which points to sunrise. The convention for horizon minutes is very easy:

the greater, the later.

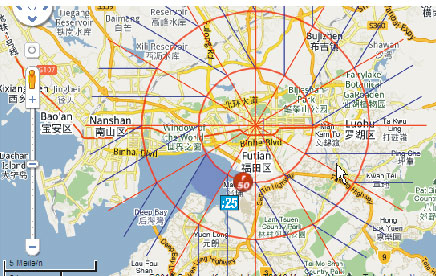

Considering the distance to m0 as r = radius also in steps of blocks of houses, logical position codes for targets, buildings, crossings etc. come into existence, e. g. as shown on the picture:

        crossing   m6:4 r13

In simple words:

"r" is a numbering starting FROM m0,

"m" is a north-direction-based numbering AROUND m0

and this simple methode covers a gigantic market gap:

      l o g i c a l   and easy understandable  p o s i t i o n   codes.



Natural Cartography©: a map with such a polar grid has innovative characteritics, see www.volksnav.com/map  Please be aware about the fact that some of above mentioned targets aren't on map but the logical position codes make it possible to imagine where they are situated !



Signage:

StatusQuo© addresses will be integrated within the existing signage, see www.volksnav.com/lollipop, or be indicated on so-called Orientators©, the signage of the future.

Vertical Pointing©: additional to the position information, a round symbol called center or pole pointer will be placed on their periphery to allow to detect the direction m0  according to the following conventions:

if the pointer is placed on top m0 will be in front of you
  on bottom   behind
  right hand   right hand

etc. Acc. to the same convention, a square symbol points to north = m12.  The picture reveils: m12 is behind, the pole is right hand

            Orientator©



Navigation / VolksNav©:

The local navigation with the help of such codes is called VolksNav©. As proceeded today with house numbers, VolksNav© is nothing else than the major/minor comparison between "r" and "m" values:

Simply proceed according to 1 -2 -3 :

1 -

Positioning





Turn your body until m0 will be BEHIND. In this position,

ahead will be outwards
right hand " to later (clockwise)
left hand " to earlier

etc.

Beginners have to turn physically, after some exercises anyone will be able to do this by his imagination power. In case you look at above shown Orientator©, you'd have to turn to left, correct?
2 -

r-comparison



Ask yourself:

must I move inwards or outwards?

 ( = is the target radius greater or smaller than the actual one?)
3 -

m-comparison



Ask yourself:

must I move to “later” (clockwise) or to earlier?

( = is the target m later or earlier than the actual one?)



Let's see an example:

Your target is:                   Lok Ma Chau point  m5:5 r33

If you've lost orientation on named crossing      m6:4 r13,

so you must go

- outwards (radius r33 is more than actual r13 )

and

- to "earlier" (countclockwise)   ( m5 is "earlier"  than the actual m6 )

This may seem to be unfamiliar, but the orientation based on cardinal points is used for some thousand years and imaginary clocks are used by soldiers, boy scouts, pilots, blind people etc. for more than 100 years. On a real situation, VolksNav© can be learned within few minutes, that means, faster than the most seeking times.

Vision:

Mobile applications: Very soon also navigation devices and mobile phones will indicate such logical position codes and cardinal points , see www.volksnav.com/mobile

You're invited to test the program for pocketPC/smartphone with/without GPS by means of a download from www.volksnav.com



Natural World Co-ordinates: the same addressing methode will soon also be used

- indoor www.volksnav.com/deutschesmuseum     www.volksnav.com/airportMUC

and

- within the whole globe, see  www.watchrose.com. Acc. to this, the international City Code of Shenzhen  is

          WatchRose© m2:640  r90 35 "

What is this good for? Just comparing the codes for example of Shenzhen and

        Zhongshan  WatchRose©  m2:700  r89 85

it is possible to evaluate that

- the position of  Shenzhen is "earlier" and farer to Munich than Zhongshan, more exactly

    :700 - :640 = 60 km earlier

    r9035 - r8985 = 50 km farer

- the distance between both locations, the hipotenuse, will be between 60 and 60+50 km.

- for advanced users:

the egocentrical direction Shenzhen  / Zhongshan  (to later/to inside) is QuoVides(R) 9, see www.quovides.com
