Munich Orientation Convention in Nanjing 中文

Nanjing has the option to be world's first city that has realized an international orientation standard, an idea from a Munichian inventor to simplify and harmonize worldwide all orientation means: signage, cartography, postal codes, navigation devices and verbal expressions.

Within this city, it is (will be) possible to find any target with easy brain work, that means

- without maps,	- without names,
- without illogical numbers	- without arrows
- without floor marks	- without square grids
- without colors	- without compass or other navigation devices

Buildings, crossings, stop points, bridges etc. have logical addresses like

railway station StatusQuo© Nanjing m1 r34

Chaotian palace m6:7 r28

Nanjing Massacre Memorial Hall m7:20 r44

Nanjing Lukou International Airport m5:100 r370

which are easy to understand if you associate the city with a clock as follows:

An outstanding point as e. g. the Drum Tower, was (will be) defined as a pole m0.

Around this pole, the horizon is divided in 12 "horizon hours"

m1 to m12

, whereas m12 points to north. Horizon hours are divided in horizon minutes. These are not angles but DISTANCES to the horizon hour, in steps of approx one "block of houses" or 100 meters.

Example m3:10

( read "emm three point ten" or "emm three ten" ).

This is a line situated in a distance of 10 x 100m from the horizon hour m3, which points to sunrise. The convention for horizon minutes is very easy:

the greater, the later.

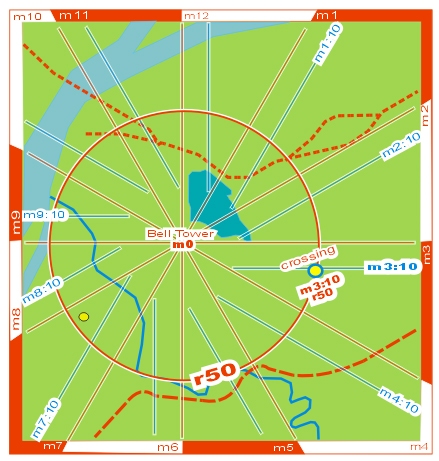

Considering the distance to m0 as r = radius also in steps of blocks of houses, logical position codes for targets, buildings, crossings etc. come into existence, e. g. as shown on the picture:

crossing m3:10 r50

In simple words:

"r" is a numbering starting FROM m0,

"m" is a north-direction-based numbering AROUND m0

and this simple methode covers a gigantic market gap:

l o g i c a l and easy understandable p o s i t i o n codes.

Natural Cartography©: a map with such a polar grid has innovative characteritics, see www.volksnav.com/map.

Please be aware about the fact that if targets aren't on map, the logical position codes make it possible to imagine where they are situated !

Signage:

StatusQuo© addresses will be integrated within the existing signage, see www.volksnav.com/lollipop, or be indicated on so-called Orientators©, the signage of the future.

Vertical Pointing©: additional to the position information, a round symbol called center or pole pointer will be placed on their periphery to allow to detect the direction m0 according to the following conventions:

if the pointer is placed	on top	m0 will be	in front of you
	on bottom		behind
	right hand		right hand

etc. Acc. to the same convention, a square symbol points to north = m12. The picture reveils: m12 is behind, the pole is right hand

Orientator©

Navigation / VolksNav©:

The local navigation with the help of such codes is called VolksNav©. As proceeded today with house numbers, VolksNav© is nothing else than the major/minor comparison between "r" and "m" values:

Simply proceed according to 1 -2 -3 :

1 -

Positioning

Turn your body until m0 will be BEHIND. In this position,

ahead	will be	outwards
right hand	"	to later (clockwise)
left hand	"	to earlier

etc.

Beginners have to turn physically, after some exercises anyone will be able to do this by his imagination power. In case you look at above shown Orientator©, you'd have to turn to left, correct?

2 -

r-comparison

Ask yourself:

must I move inwards or outwards?

( = is the target radius greater or smaller than the actual one?)

3 -

m-comparison

Ask yourself:

must I move to “later” (clockwise) or to earlier?

( = is the target m later or earlier than the actual one?)

Let's see an example:

Your target is: railway station m1 r34

If you've lost orientation on named crossing m3:10 r50

so you must go

- to "earlier" (counterclockwise) ( m1 is "earlier" than the actual m3 )

and

- inwards (radius r34 is less than actual r50 )

This may seem to be unfamiliar, but the orientation based on cardinal points is used for some thousand years and imaginary clocks are used by soldiers, boy scouts, pilots, blind people etc. for more than 100 years. On a real situation, VolksNav© can be learned within few minutes, that means, faster than the most seeking times.

Vision:

Mobile applications: Very soon also navigation devices and mobile phones will indicate such logical position codes and cardinal points , see www.volksnav.com/mobile

You're invited to test the program for pocketPC/smartphone with/without GPS by means of a download from www.volksnav.com

Natural World Co-ordinates: the same addressing methode will soon also be used

- indoor www.volksnav.com/deutschesmuseum www.volksnav.com/airportMUC

and

- within the whole globe, see www.watchrose.com. Acc. to this, the international City Code of Nanjing is

What is this good for? Just comparing the codes for example of Nanjing and

it is possible to evaluate that

- the position of Jiangpu is "later" and closer to Munich than Nanjing, more exactly

:2850 - :2840 = 10 km later

r8540 - r8530 = 10 km closer

- the distance between both locations, the hipotenuse, will be between 10 and 10+10 km.

- for advanced users:

the egocentrical direction Nanjing / Jiangpu (to later/to inside) is QuoVides(R) 10, see www.quovides.com
