Munich Orientation Convention in Malta

Malta has the option to be world's first country that has realized an international orientation standard, an idea from a Munichian inventor to simplify and harmonize worldwide all orientation means: signage, cartography, navigation devices and verbal expressions.

Within this country, it is (will be) possible to find any target with easy brain work, that means

- without maps,	- without names,
- without illogical numbers	- without arrows
- without floor marks	- without square grids
- without colors	- without compass or other navigation devices

Buildings, crossings, stop points etc. have logical addresses like

Malta international airport StatusQuo© Malta m7:5 r50

Fort St. Lucian m5:8 r80

Dingli Cliffs radar m8:15 r125

horce track m10:30 r265

which are easy to understand if you associate the city with a clock as follows:

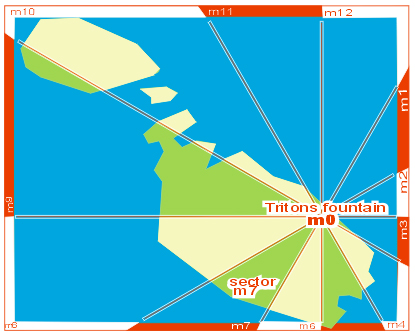

An outstanding point as e. g. the Tritons fountain was (will be) defined as a pole m0. Around this pole, the horizon is divided in 12 "horizon hours" m1 to m12 , whereas m12 points to north.

This divides the city as a cake in 12 imaginary sectors. As an example, the sector m7 was marked.

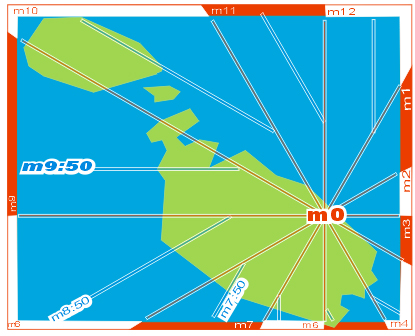

The sectors are divided in horizon minutes. These are not angles but DISTANCES to the horizon hour, in steps of approx one "block of houses" or 100 meters.

Example m9:50 ( read "emm 9 point 50" or "emm nine 50" ).

This is a line situated in a distance of 50 x 100m from the horizon hour m9, which points to sunset.

The convention for horizon minutes is very simple:

the greater, the later.

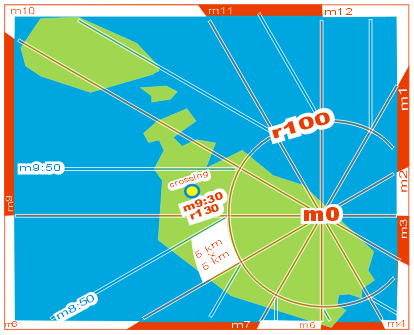

Considering the distance to m0 as r = radius also in steps of blocks of houses, logical position codes for targets, buildings, crossings etc. come into existence, e. g. as shown on the picture:

crossing StatusQuo© Malta m9:30 r130

StatusQuo means "where you are". In simple words:

"r" is a numbering starting FROM m0,

"m" is a north-direction-based numbering AROUND m0

and this simple methode covers a gigantic market gap:

l o g i c a l and easy understandable p o s i t i o n codes.

Natural Cartography©:

a map with such a polar grid has innovative characteritics, see www.volksnav.com/map . Please be aware about the fact that if the target isn't on map, with the help of the logical position code it's possible to imagine where it is situated !!

Interesting details:

- the search grid contains quadrangules similar to the conventional ones. The picture above shows a white quadrangule with the dimensions 5 km x 5 km. The bended sides let know in which direction the urban pole is situated, even if the centre isn't on map.

- the width of the sector is half the radius !! Example: m8:50 r100, m8:100 r200 etc..

- the middle of the sector is radius/4. Example: m8:50 r200

Signage:

StatusQuo© addresses will be integrated within the existing signage, see www.volksnav.com/lollipop, or be indicated on so-called Orientators©, the signage of the future.

Vertical Pointing©: additional to the position information, a round symbol called center or pole pointer will be placed on their periphery to allow to detect the direction m0 according to the following conventions:

if the pointer is placed	on top (f12)	m0 will be	in front of you (f12)
	on bottom (f6)		behind (f6)
	right hand (f3)		right hand (f3)

etc. Acc. to the same convention, a square symbol points to north = m12. The picture reveils: m12 is behind, the pole is right hand

Orientator©

Navigation / VolksNav©:

The local navigation with the help of such codes is called VolksNav©. As proceeded today with house numbers, VolksNav© is nothing else than the major/minor comparison between "r" and "m" values:

Simply proceed according to 1 -2 -3 :

1 -

Positioning

Turn your body until m0 will be BEHIND. In this position,

ahead	will be	outwards
right hand	"	to later (clockwise)
left hand	"	to earlier

etc.

Beginners have to turn physically, after some exercises anyone will be able to do this by his imagination power. In case you look at above shown Orientator©, you'd have to turn to left, correct?

2 -

r-comparison

Ask yourself:

must I move inwards or outwards?

( = is the target radius greater or smaller than the actual one?)

3 -

m-comparison

Ask yourself:

must I move to “later” (clockwise) or to earlier?

( = is the target m later or earlier than the actual one?)

Let's see an example:

Your target is: airport m7:5 r50

If you've lost orientation on named crossing m9:30 r130,

so you must go

- inwards (radius r50 is less than actual r130 )

and

- to "earlier" (counterclockwise) ( m7 is "earlier" than the actual m9 )

This may seem to be unfamiliar, but the orientation based on cardinal points is used for some thousand years and imaginary clocks are used by soldiers, boy scouts, pilots, blind people etc. for more than 100 years.

In a real situation, VolksNav© can be learned within few minutes, that means, faster than the most seeking times. Then you'll be able to navigate everywhere as elegant as around the Christus statue in Rio de Janeiro, where the idea of a quantified polar orientation and an orientation standard was born.

Vision:

Mobile applications: Very soon also navigation devices and mobile phones will indicate such logical position codes and cardinal points , see www.volksnav.com/mobile

You're invited to test the program for pocketPC/smartphone with/without GPS by means of a download from www.volksnav.com

Natural World Co-ordinates: the same addressing methode will soon also be used

- indoor www.volksnav.com/deutschesmuseum www.volksnav.com/airportMUC

and

- within the whole globe, see www.watchrose.com. Acc. to this, the international City Code of Valletta is

What is this good for? Just comparing the codes for example of Valletta and

it is possible to evaluate that

- the position of Bubaqra is "later" and farther to Munich than Valletta, more exactly

:455 - :450 = 5 km later

r1390 - r1380 = 10 km farther

- the distance between both locations, the hipotenuse, will be between 10 and 10+5 km.

- for advanced users:

the egocentrical direction Valletta / Bubaqra (to later/to outside) is QuoVides(R) 7, see www.quovides.com
