VolksNav© in Amman
Amman has the option to be world's first city that has realized an international orientation standard, an idea from a Munichian inventor to simplify and harmonize worldwide all orientation means: signage, cartography, postal codes, navigation devices and verbal expressions.
Within this city, it is (will be) possible to find any target with easy brain work, that means
| - without maps, | - without names, |
| - without illogical numbers | - without arrows |
| - without floor marks | - without square grids |
| - without colors | - without compass or other navigation devices |
Buildings, crossings, stop points, bridges etc. have logical addresses like
Islamic hospital StatusQuo© Amman m10 r30
King Abdulla's mosque m9:8 r22
Goethe Institut m9:3 r25
University of Jordan hospital bridge m10:19 r64
Queen Alia international airport m5:80 r260
which are easy to understand if you associate the city with a clock as follows:

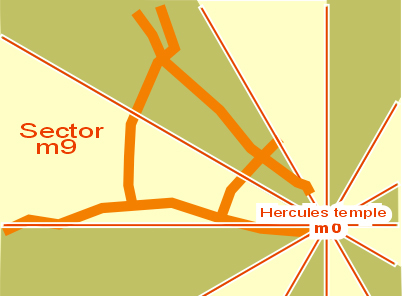

An outstanding point as e. g. the Hercules temple was (will be) defined as a pole m0. Around this pole, the horizon is divided in 12 "horizon hours" m1 to m12 , whereas m12 points to north. This divides the city as a cake in 12 imaginary sectors. As an example, the sector m9 was marked. |
 |
 |

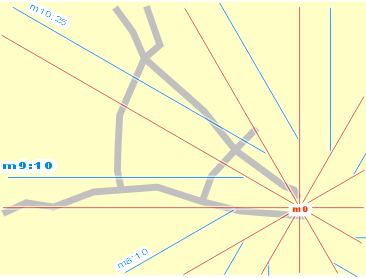

The sectors are divided in horizon minutes. These are not angles but DISTANCES to the horizon hour, in steps of approx. one "block of houses" or 100 meters.
Example m9:10 ( read "emm 9 point 10" or "emm nine 10" ). This is a line situated in a distance of 10 x 100m from the horizon hour m9, which points to sunset. The convention for horizon minutes is very simple: the greater, the later. |

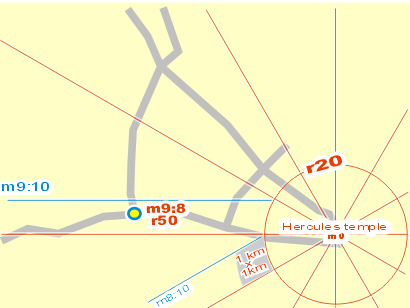

Considering the distance to m0 as r = radius also in steps of blocks of houses, logical position codes for targets, buildings, crossings etc. come into existence, e. g. as shown on the picture: crossing StatusQuo© m9:8 r50 StatusQuo means "where you are". In simple words: "r" is a numbering starting FROM m0, "m" is a north-direction-based numbering AROUND m0 |
 |
This simple methode covers a gigantic market gap:
l o g i c a l and easy understandable p o s i t i o n codes.
Natural Cartography
A map with such a polar grid has innovative characteritics, see www.volksnav.com/map . Please be aware about the fact that if the target isn't on map, with the help of the logical position code it's possible to imagine where it is situated !!
Interesting details:
- the search grid contains quadrangules similar to the conventional ones. The picture above shows a gray quadrangule with the dimensions 1 km x 1 km. The bended sides let know in which direction the urban pole is situated, even if the centre isn't on map.
- the width of the sector is half the radius !! Example: m8:5 r10, m8:10 r20 etc..
- the middle of the sector is radius/4. Example: m8:5 r20

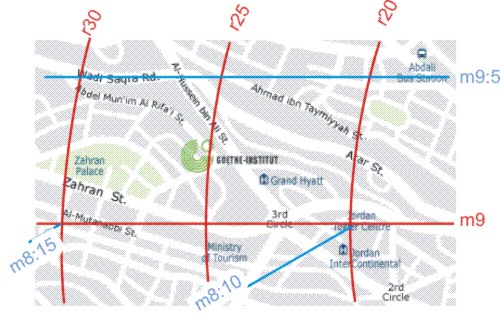

A location map would look like this:
Goethe
Institut m9:3 r25
Signage
StatusQuo© addresses will be integrated within the existing signage, see www.volksnav.com/lollipop, or be indicated on so-called Orientators©, the signage of the future.
|
Vertical Pointing©: additional to the position information, a round symbol called center or pole pointer will be placed on their periphery to allow to detect the direction m0 according to the following conventions:
etc. Acc. to the same convention, a square symbol points to north = m12. The picture reveils: m12 is behind, the pole is right hand |
Orientator© |
VolksNav©
The local navigation with the help of such codes is called VolksNav©. As proceeded today with house numbers, VolksNav© is nothing else than the major/minor comparison between "r" and "m" values:
Simply proceed according to 1 -2 -3 :
| 1 -
Positioning
|
Turn your body until m0 will be BEHIND. In this position,
etc. Beginners have to turn physically, after some exercises anyone will be able to do this by his imagination power. In case you look at above shown Orientator©, you'd have to turn to left, correct? |
|||||||||
| 2 -
r-comparison
|
Ask yourself: must I move inwards or outwards? ( = is the target radius greater or smaller than the actual one?) |
|||||||||
| 3 -
m-comparison
|
Ask yourself: must I move to “later” (clockwise) or to earlier? ( = is the target m later or earlier than the actual one?)
|
Let's see an example:
Your target is: Islamic hospital m10 r30
If you've lost orientation on named crossing m9:8 r50
so you must go
- to "later" (clockwise) ( m10 is "later" than the actual m9 )
and
- inwards (radius r30 is less than actual r50 )
This may seem to be unfamiliar, but the orientation based on cardinal points is used for some thousand years and imaginary clocks are used by soldiers, boy scouts, pilots, blind people etc. for more than 100 years.
 |
In a real situation, VolksNav© can be learned within few minutes, that means, faster than the most seeking times. Then you'll be able to navigate everywhere as elegant as around the Christus statue in Rio de Janeiro, where the idea of a quantified polar orientation and an orientation standard was born. |
Visions: mobile / indoor / global
 |
Mobile applications: Very soon also navigation devices and mobile phones will indicate such logical position codes and cardinal points , see www.volksnav.com/mobile
You're invited to test the program for pocketPC/smartphone with/without GPS by means of a download from www.volksnav.com
|
indoor orientation / logical room numbers
The same addressing methode will also be used indoor, see www.volksnav.com/deutschesmuseum
natural World Coordinates WatchRose©
According to www.watchrose.com, this method also allows to address
cities and small towns
road entrances / exits / crossings
bridges
tunnels
etc in a worldwide harmony. Acc. to this, the international City Code of Amman is
WatchRose© m4:115 r27 25
What is this good for? Just comparing the codes for example of Amman and
Madaba WatchRose© m4:140 r27 35
is possible to evaluate that
- the position of Madab is "later" and farther to Munich than Amman, more exactly
:140 - :115= 25 km later
r2735 - r2725 = 10 km farther
- the distance between both locations, the hipotenuse, will be between 25 and 25+10 km.
- for advanced users:
the egocentrical direction Amman / Madaba (to later/to outside) is QuoVides(R) 7, see www.quovides.com
